24.5mm JCW Acoustic Silent Board Eco - Acoustic Wall Liner - 1200mm x 1200mm

24.5mm JCW Acoustic Silent Board Eco - Acoustic Wall Liner - 1200mm x 1200mm
24.5mm JCW Acoustic Silent Board Eco - Acoustic Wall Liner - 1200mm x 1200mm
Guide Price
24.5mm JCW Acoustic Silent Board Eco - Acoustic Wall Liner - 1200mm x 1200mm
24.5mm JCW Acoustic Silent Board Eco - Acoustic Wall Liner - 1200mm x 1200mm
24.5mm JCW Acoustic Silent Board Eco - Acoustic Wall Liner - 1200mm x 1200mm
Guide Price: £49.17 (£59.00 inc VAT)
Price per m2: £34.15/m2 (£40.98 inc VAT)
To add to cart change quantity to minimum of 25. If you need less, ask for a price or add to a quote list.
  • Product Code: A1-5943
  • Delivery Time: 2 - 3 working days
  • Brand: JCW
  • (Tech. support: 08453402858)
  • Model and Size: 1200mm x 1200mm - 1.44m2
  • Weight: 22.90kg
Our ratings on 23-04-2025:
TrustPilot Review 4.7
4.7 out of 5 - Excellent
Google My Business Reviews
4.8 out of 5
Show other thicknesses

24.5mm JCW Acoustic Silent Board Eco - Acoustic Wall Liner - 1200mm x 1200mm

Length: 1200mm
Width: 1200mm
Thickness: 24.5mm
Board coverage: 1.44m2
Weight/m2: 15.9kg
Weight: 22.9kg

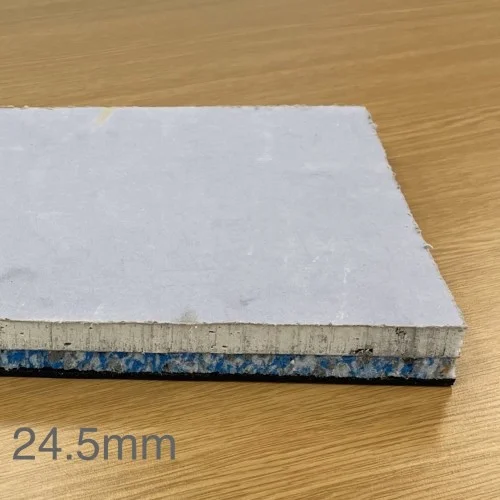

24.5mm JCW Silent Board is an acoustic wall liner manufactured by laminating a 12mm acoustic resilient layer to a 12.5mm layer of acoustic grade plasterboard to drastically reduce sound transmission. It can be applied to either masonry or stud walls and is also suitable to reduce flanking noise up and down walls.

CHARACTERISTICS
  • Easy as a quick to install
  • Solution directly onto  walls
  • thin build-up ensures little compromise on living space without compromising high performance
  • Simple to apply to lightweight wall structures or existing plasterboard so theres no stud work required
  • Ensures little compromise on living space without compromising high performance
  • Compliant with Part E building regulations
  • Could be used as a remedial solution for sound test failures
  • Fire retardant
  • 100% of the material has been recycled
  • Flexible, once installed the plasterboard surface is ready for any decorative finish



APPLICATION
  • New build
  • Refurbishments
  • Domestic upgrade
  • On masonry or stud walls

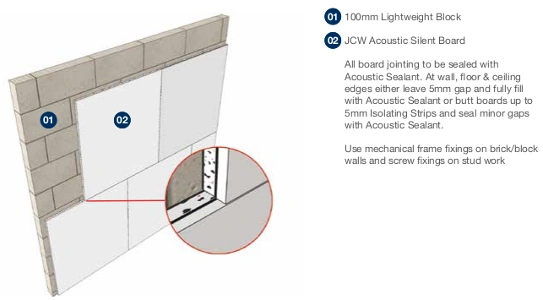

INSTALLATION
  • All skirting and coving is to be removed.
  • Walls should be flat and/or prepared to accept the JCW Silent Boards.
  • Start fitting from either right hand or left hand corner. Plan the bottom row to allow for cuts and staggered joints on all of the rows above.
  • JCW Silent Boards must be isolated from the surrounding floor, ceiling and walls. Use JCW Rubber Isolation Strips between the JCW Silent Boards and the surrounding surfaces.
  • Any minor gaps can be filled with JCW Acoustic Sealant.
  • Alternatively, use 5mm spacers between the JCW Silent Boards and surrounding surfaces, then once the wall is completed, remove the spacers and fully the space  with JCW Acoustic Sealant.
  • JCW Silent Boards are mechanically fixed to the wall using 12 fixings per board; solid brick or block walls use tap in screw frame fixings. On Stud walls use suitable self-countersinking screws.
  • Do not overtighten the screw fixings,
  • Once the first JCW Silient Board is fitted in position, continue along the bottom row filling any gaps between the boards with JCW Acoustic Sealant.
  • JCW Silent Boards can be plaster skimmed.
CERTIFICATION

JCW Acoustic Silent Board has been independently tested in a UK Verified independent UKAS accredited laboratory.
