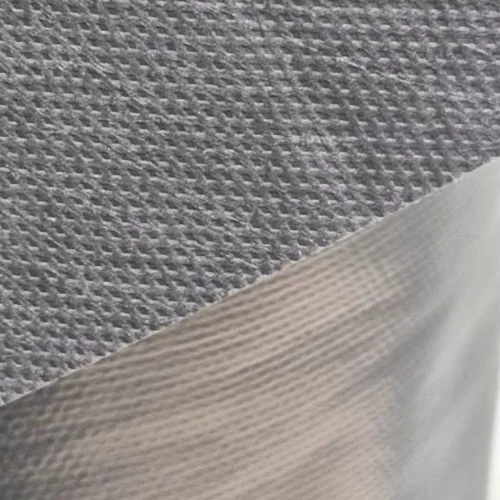

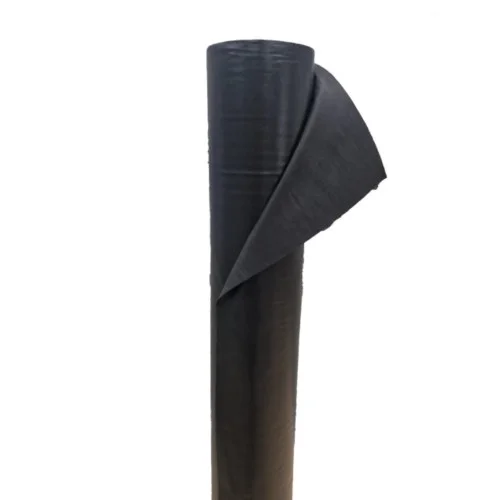

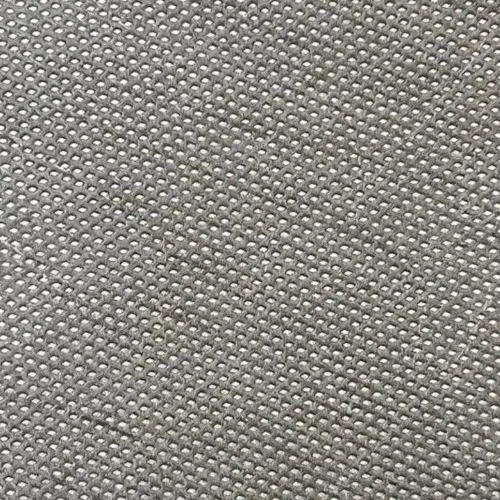

Novia UV Facade FR Roof and Wall Breather Membrane - 1.5m x 50m Roll

Novia UV Facade FR Roof and Wall Breather Membrane - 1.5m x 50m Roll
Novia UV Facade FR Roof and Wall Breather Membrane - 1.5m x 50m Roll
Novia UV Facade FR Roof and Wall Breather Membrane - 1.5m x 50m Roll
Guide Price
Novia UV Facade FR Roof and Wall Breather Membrane - 1.5m x 50m Roll
Novia UV Facade FR Roof and Wall Breather Membrane - 1.5m x 50m Roll
Novia UV Facade FR Roof and Wall Breather Membrane - 1.5m x 50m Roll
Novia UV Facade FR Roof and Wall Breather Membrane - 1.5m x 50m Roll
Guide Price: £185.79 (£222.95 inc VAT)
Price per m2: £2.48/m2 (£2.97 inc VAT)
  • Product Code: A1-5766
  • Delivery Time: 1-3 working days
  • Brand: Novia
  • (Tech. support: 01622678952)
  • Model and Size: 1.5m x 50m - 75m2
  • Weight: 8.25kg
Our ratings on 01-04-2025:
TrustPilot Review 4.7
4.7 out of 5 - Excellent
Google My Business Reviews
4.8 out of 5
Show Other types

Novia UV Facade FR Roof and Wall Breather Membrane - 1.5m x 50m Roll

Length: 50000mm
Width: 1500mm
Roll Coverage: 75m2
Weight/m2: 0.11kg
Weight: 8.25kg
Fire Rating (Reaction to Fire): B(Class 0)

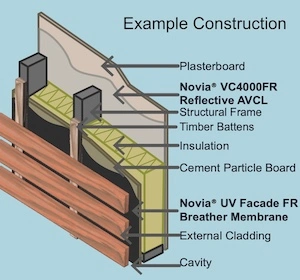

Novia UV Facade FR Roof and Wall Breather Membrane is a high-performance, fire-rated, UV-resistant, lightweight and versatile breather membrane, suitable for both pitched cold and warm roofs, as well as insulated wall applications. Conforming to EN 13859-1 for pitched roofing and EN 13859-2 for walls, it holds a Class B-s1,d0 fire rating. With a Class W1 water resistance and high breathability, it has been rigorously tested for 5000 hours of UV exposure. This membrane, which is completely black on both sides and devoid of text or images, is ideal for open rainscreen facade applications with joint widths up to 30mm, where no more than 40% of the membrane is visible.

CHARACTERISTICS

  • High-performance, lightweight, versatile breather membrane
  • UV-resistant and fire-rated to Class B-s1,d0
  • Suitable for pitched cold and warm roofs and insulated wall applications
  • Complies with EN 13859-1 for pitched roofing and EN 13859-2 for walls
  • Provides Class W1 water resistance and high breathability
  • Passed rigorous 5000 hours of UV testing
  • Completely black on both sides with no text or images
  • Ideal for open rainscreen facade applications with joint widths up to 30mm
  • Up to 40% of the total membrane area can be exposed
APPLICATION

  • Suitable for pitched cold roofs
  • Ideal for pitched warm roofs
  • Perfect for insulated wall applications
  • Suitable for high-rise buildings
  • Great for open rainscreen facades with joint widths up to 30mm

INSTALLATION

To walls

  • Fix the membrane to the wall structure.
  • Ensure upper layers overlap lower layers.
  • Work from the bottom upwards.
  • Ensure a minimum overlap of 100 mm on horizontal joint.

To roofs

  • Fix the membrane to the roof structure.
  • Ensure upper layers overlap lower layers.
  • Work from the bottom upwards.
  • Ensure a minimum overlap of 200 mm on each side of the ridge.
  • All vertical overlaps must be situated on a rafter and sealed.
CERTIFICATION

  • CE marked to EN 13859-1 (roofs) and EN 13859-2 (walls)
