Novia Black Plus Pro 150GSM Roof and Wall Breather Membrane - 1.5m x 50m Roll
![Novia Black Plus Pro 150GSM Roof and Wall Breather Membrane - 1.5m x 50m Roll Novia Black Plus Pro 150GSM Roof and Wall Breather Membrane - 1.5m x 50m Roll](https://www.insulationshop.co/image/cache/catalog/product/Novia/New/Novia_Black+_Pro_Roll-550x550h.jpg)
Novia Black Plus Pro 150GSM Roof and Wall Breather Membrane - 1.5m x 50m Roll
Novia Black+ Pro 150GSM Roof and Wall Breather Membrane - 1.5m x 50m Roll
Width: 1500mm
Weight: 11kg
Fire Rating (Reaction to Fire): E
Novia Black+ Pro 150GSM Roof and Wall Breather is a premium quality, versatile, heavyweight, very strong breather membrane for all pitched cold and warm roofs, and insulated wall applications. It has excellent water resistance and also provides high breathability. Novia Black Pro is completely black on one side and grey on the reverse with a 150mm overlap line. Novia Black Pro meets EN 13859-1 for pitched roofing and EN 13859-2 for walls.
CHARACTERISTICS

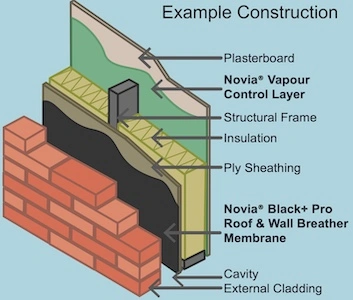

![](http://www.insulationshop.co/image/catalog/product/Novia/New/Novia_Black_plus_Pro_sample_installation.jpg)
- Heavy weight breather membrane,
- Matt finish slip-resistant surface,
- Highly waterproof,
- Highly vapour permeable,
- Class W1 water resistance to EN 1928,
- Premium performance tensile and nail tear strength,
- Single product for all roofs and walls,
- 3-layer laminate with microporous core,
- Compliant to EN 13859-1 for roofs and EN 13859-2 for walls,
- Tested for BS 5534 wind uplift requirements,
- Air and wind tight,
- Recyclable and ecologically harmless.
APPLICATION
- For pitched cold and warm roofs,
- For insulated wall applications.
INSTALLATION
To walls
- Ensure upper layers overlap lower layers.
- Work from the bottom moving upwards and ensuring there are minimum overlaps of 100 mm on the horizontal joints.
- Do not begin a vertical lap joint within 300 mm of a corner,
- Vertical laps should be at least 150 mm.
- Ensure the bottom timber is also protected by an overlap.
- Fix at suitable intervals with galvanised nails, stainless staples or similar permanent fixings.
To roofs
- Ensure upper layers overlap lower layers.
- Work from the bottom moving upwards and ensure there are minimum overlaps.
- The membrane should be overlapped 200 mm on each side of the ridge.
- All vertical overlaps must be situated on a rafter and must be sealed.
- Fix at suitable intervals with galvanised nails, stainless staples or similar permanent fixings.
- At any entry points for services (soil pipes, vents etc.), ensure that the membrane is properly sealed.
- Use of Novia breather membrane tapes.
- Ensure that for wall or warm roof applications, a vapour barrier is installed on the warm side of the insulation.
Note:
Do not leave the membrane unnecessarily exposed to weathering, high winds, excessive UV etc. as this may cause damage over time. If you must leave the membrane exposed for extended periods of time, consider the use of suitable temporary protection materials.
