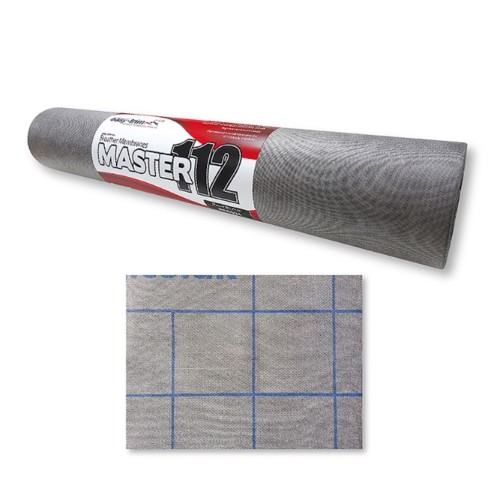

Easy-Trim Master 112GSM Breather Membrane for Pitched Roofs - 1m x 50m Roll
Easy-Trim Master 112GSM Breather Membrane for Pitched Roofs - 1m x 50m Roll
Guide Price: £39.88 (£47.86 inc VAT)
Price per m2: £0.80/m2 (£0.96 inc VAT)
- Product Code: A1-3157
- Delivery Time: 1 - 2 days
- Model and Size: 1m x 50m
- Weight: 5.60kg
Our ratings on 22-11-2024:
4.7 out of 5 - Excellent
4.8 out of 5
Easy-Trim Master 112GSM Breather Membrane for Pitched Roofs - 1m x 50m Roll
Width: 1000mm
Weight/m2: 0.11kg
Weight: 5.6kg
Fire Rating (Reaction to Fire): E
Easy-Trim Master 112GSM Breather Membrane is an air tight, vapour permeable, lightweight breather membrane for fully supported and unsupported installations in pitched roofs. It is a high performance breather membrane, consists of 3 layers to achieve a high vapour permeability, superior water resistant performance, and brilliant tensile tear strength. It can be used also in timber and metal framed constructions. Suitable for applications on warm, cold and hybrid roofs.
CHARACTERISTICS
- Lightweight and easy to handle,
- Excellent tensile and nail tear strength,
- 3 month UV resistant,
- Highly waterproof,
- Highly vapour permeable,

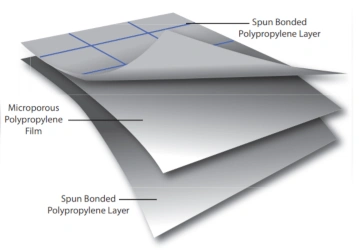

- 3-layer laminate,
- Tested for wind uplift requirements.
APPLICATION
- For pitched cold and warm roofs,
- For timber and metal frame structures.
INSTALLATION
- Ensure the membrane is installed with the printed side facing out
- Ensure upper layers overlap lower layers.
- Work from the left to right and ensuring a minimum overlaps of 100 mm on joints.
- Horizontal laps in the underlay should be taped with the double sided overlap tape, or battened over.
Note:
Do not leave the membrane unnecessarily exposed to weathering, high winds, excessive UV etc. as this may cause damage over time. If you must leave the membrane exposed for extended periods of time, consider the use of suitable temporary protection materials.
CERTIFICATION
- BBA certified for warm and cold roof applications BBA 10/4753,
- Conforms to BS 5534.2014 Annex A,
- Type LR Underlay to BS 5250
easy-trim-Breather-2015-BBA.pdf
