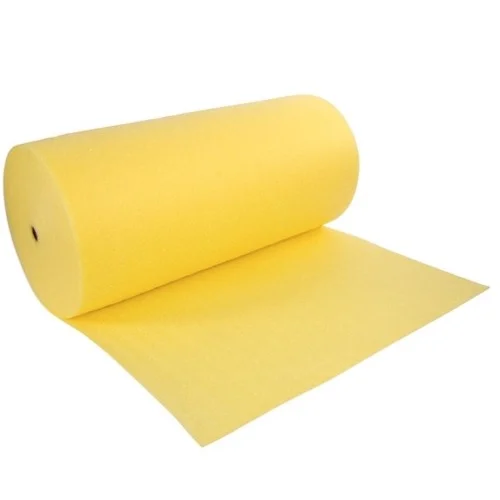

5mm Cellecta YELOfon HD 5 Soundproofing Roll
Guide Price
5mm Cellecta YELOfon HD 5 Soundproofing Roll
Guide Price: £208.59 (£250.31 inc VAT)
Price per m2: £1.85/m2 (£2.22 inc VAT)
- Product Code: A1-749
- Delivery Time: 3 - 5 days
- Brand: Cellecta (Tech. support: 01634296677)
- Model and Size: 1.5x75m - 112.5m2
Our ratings on 02-07-2024:
4.7 out of 5 - Excellent
4.8 out of 5
5mm Cellecta YELOfon HD 5 Soundproofing Roll
Thickness: 5mm
Width: 1500mm
Roll Length: 75m
Coverage: 112.5m2
Weight/m2: 0.15kg
Impact Sound Insulation: 54dB
Airbourne sound insulation: 52dB
Cellecta YELOfon HD5 is a lightweight, easy to cut and install non-cross polyethylene foam, specifically designed to reduce impact noise through concrete floors with a floating screed. When used in conjunction with Cellecta HEXATHERM XFLOOR and DECKfon Ultralay 5, it is Robust detail E-FC-8 compliant. Supplied in lightwight rolls, they are incredibly easy to handle and lift on sight. Their thin composition also make them incredibly easy to cut on site, allowing for quick and simple installation. This represents significant benefits over rubber based flooring products that are typically heavy and cumbersome to install.
CHARACTERISTICS
- Very lightweight,
- High impact sound deadening properties,
- Ideal for floors including an underfloor heating system,
- Compliant with Robust detail E-FC-8, when properly combined,
- Easy to cut to size,
- Easy to handle and install,
APPLICATION
Cellecta Yelofon HD 5 is especially applicable to concrete floors covered with a floating screed and ones that include an underfloor heating system.
CERTIFICATION
- Robust detail compliant: Resilient layer for E-FC-8.
- Values quoted are typical, based on the treatments being installed correctly and pre-completion tested.
- Airborne performance tested in accordance with BS EN ISO 140-4:1998
- Impact performance tested in accordance with BS EN ISO 140-7: 1998
Yelofon_HD5_Screed_laid_on_resilient_layers_precast_slab_pct_solution.pdf
