British Gypsum Gypwall Rapid GWR3 Floor and Ceiling Channel (pack of 10)

British Gypsum Gypwall Rapid GWR3 Floor and Ceiling  Channel (pack of 10)
British Gypsum Gypwall Rapid GWR3 Floor and Ceiling  Channel (pack of 10)
British Gypsum Gypwall Rapid GWR3 Floor and Ceiling  Channel (pack of 10)
British Gypsum Gypwall Rapid GWR3 Floor and Ceiling  Channel (pack of 10)
British Gypsum Gypwall Rapid GWR3 Floor and Ceiling Channel (pack of 10)
Price: £65.18 (£78.22 inc VAT)
3 or more £64.12 (£76.94 inc VAT)
4 or more £63.05 (£75.66 inc VAT)
5 or more £61.45 (£73.74 inc VAT)
  • Product Code: A1-895
  • Delivery Time: 3 - 5 days
  • Brand: British Gypsum
  • (Tech. support: 01159456123)
  • Model and Size: GWR3 - 2.4m
  • Weight: 1.00kg
Our ratings on 02-07-2024:
TrustPilot Review 4.7
4.7 out of 5 - Excellent
Google My Business Reviews
4.8 out of 5

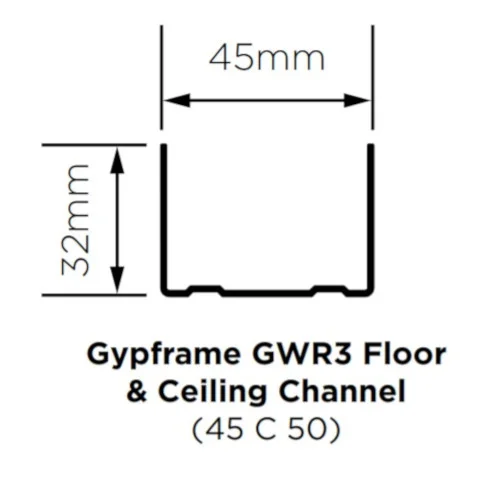

British Gypsum Gypwall Rapid GWR3 Floor and Ceiling Channel (pack of 10)

Thickness: 0.5mm
Width: 45mm
Length: 2400mm
Weight: 1kg

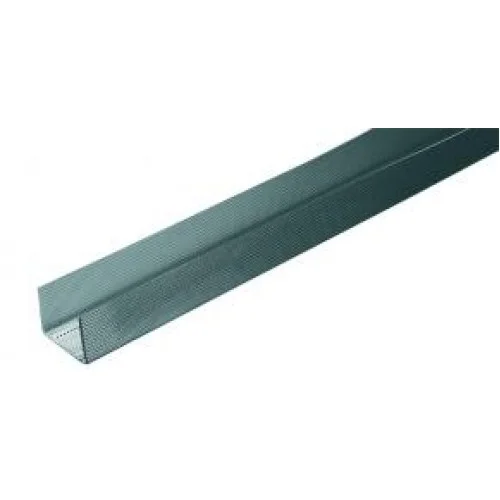

British Gypsum Gypwall Rapid GWR3 Floor and Ceiling Channel is especially designed to be used with the GypWall RAPID dB PLUS internal wall system incorporating Gyproc SoundBloc RAPID linings, providing not only acoustic insulation but also impact and fire resistance, in accordance with the applicable Building Regulations. The system includes two installation options with noggins (900mm stud framing) and without noggins (450mm stud frames) which are both very easy to install, achieving the Rw value of 40dB. The system is particularly applicable to internal wall constructions in residential dwellings, whereas special attention should be given to determining the position of services in the frame erection stage and the potential loss of acoustic insulation performance of the system through structural steelwork.

APPLICATION

Gypwall Rapid GWR3 Floor and Ceiling Channel is used for GypWall RAPID dB PLUS internal wall system.

CERTIFICATION

The product is in compliance with the:

  • European Standard EN 14195
