78mm British Gypsum Gyproc Thermaline PIR MR Insulated Plasterboard - (68.5mm PIR and 12.5mm Gyproc MR WallBoard)

78mm British Gypsum Gyproc Thermaline PIR MR Insulated Plasterboard - (68.5mm PIR and 12.5mm Gyproc MR WallBoard)
78mm British Gypsum Gyproc Thermaline PIR MR Insulated Plasterboard - (68.5mm PIR and 12.5mm Gyproc MR WallBoard)
Guide Price: £156.24 (£187.49 inc VAT)
Price per m2: £54.25/m2 (£65.10 inc VAT)
  • Product Code: A1-993
  • Delivery Time: 1 - 5 working days
  • Due to nationwide shortage of PIR insulation lead time may be longer for this product.
  • Brand: British Gypsum
  • (Tech. support: 01159456123)
  • Model and Size: PIR MR - 78mm
  • Weight: 32.54kg
Our ratings on 04-11-2024:
TrustPilot Review 4.6
4.6 out of 5 - Excellent
Google My Business Reviews
4.8 out of 5
Show other thicknesses

78mm British Gypsum Gyproc Thermaline PIR MR Insulated Plasterboard - (68.5mm PIR + 12.5mm Gyproc MR WallBoard)

Width: 1200mm
Length: 2400mm
Coverage: 2.88m2
Density: 145kg/m3
Weight/m2: 11.3kg
R-Value: 3m2K/W
Weight: 32.54kg

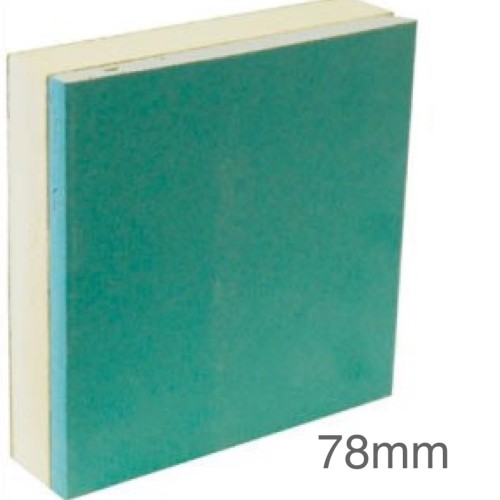

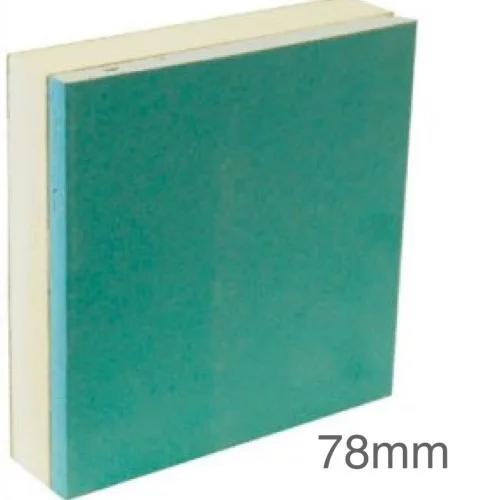

78mm Gyproc Thermaline PIR MR Insulated Plasterboard consists of a 12.5mm Gyproc Moisture Resistant Board factory bonded to a 68.5mm  rigid polyisocyanurate foam (PIR) with a multi-layer Kraft/aluminium facer on both sides of the insulation board and conforms to BS EN 13950. Gyproc ThermaLine PIR MR Insulated Plasterboard is only available in a tapered edge finish. This insulated plasterboard should be installed in such a way that the Gyproc Moisture Resistant Board face of the product always forms the exposed surface of the wall or ceiling being lined. It can be used where a mid or high level of additional thermal insulation is required in both refurbishment and new-build.

Note: This product is not suitable where the insulant face of the product is required to meet a reaction to fire performance criteria or where the use products which are only non-combustible or of limited combustibility components on the wall, floor or ceiling element.

CHARACTERISTICS

  • Easy to use,
  • Faced with ivory coloured Gyproc Moisture Resistant Board,
  • Double vapour control barrier,
  • Available in tapered edge only,
  • Complies with EN 13950,
  • Thermal Conductivity:  Gyproc Moisture Resistant Board 0.19W/mK,  PIR foam 0.022W/mK
  • Can be fixed directly to timber frame.

APPLICATION

  • Drywall,
  • Ceiling.

CERTIFICATION

  • Suitable for use as an internal lining material for walls and ceilings as defined in the Building Regulations Approved Document B Vol 1 and 2,
  • Achieves a Euroclass, in accordance with The European Classification System of B (s1, d0) to BS EN 13501-1, when tested in the intended end use condition.
