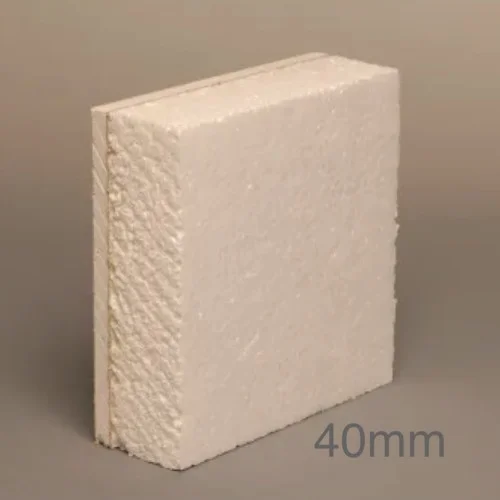

40mm Gyproc Thermaline Basic Insulated Plasterboard - (30.5mm EPS and 9.5mm Gypsum Wallboard)

40mm Gyproc Thermaline Basic Insulated Plasterboard - (30.5mm EPS and 9.5mm Gypsum Wallboard)
40mm Gyproc Thermaline Basic Insulated Plasterboard - (30.5mm EPS and 9.5mm Gypsum Wallboard)
Price: £40.01 (£48.01 inc VAT)
Price per m2: £13.89/m2 (£16.67 inc VAT)
10 or more £39.36 (£47.23 inc VAT)
15 or more £37.98 (£45.58 inc VAT)
20 or more £37.49 (£44.99 inc VAT)
  • Product Code: A1-983
  • Delivery Time: 2 - 3 working days
  • Brand: British Gypsum
  • (Tech. support: 01159456123)
  • Model and Size: Basic - 40mm
  • Weight: 23.33kg
Our ratings on 22-11-2024:
TrustPilot Review 4.7
4.7 out of 5 - Excellent
Google My Business Reviews
4.8 out of 5
Show other thicknesses

40mm Gyproc Thermaline Basic Insulated Plasterboard - (30.5mm EPS + 9.5mm Gypsum Wallboard)

Width: 1200mm
Length: 2400mm
Coverage: 2.88m2
Density: 202.5kg/m3
Weight/m2: 8.1kg
Weight: 23.33kg
R-Value: 0.8m2K/W
Fire Rating (Reaction to Fire): B(Class 0)
Surface Spread of Flame: Class 1

40mm Gyproc Thermaline Basic is a 9.5mm Gyproc wall board factory-bonded to a 30.5mm expanded polystyrene insulant that is both CFC and HCFC-free. The Gyproc board consists of an aerated gypsum core encased  in, and firmly bonded to, strong paper liners. The expanded polystyrene insulant is then further bonded to the finished plasterboard. It is a plasterboard suitable for drylining internal surfaces. Available in tapered edge only.

CHARACTERISTICS
  • Plasterboard linings provide good fire protection owing to the unique behaviour of the non-combustible gypsum core when subjected to high temperatures,
  • Gyproc WallBoard - 0.19W/mK,
  • Expanded polystyrene - 0.040W/mK,
  • Reduce the risk of  condensation and mould growth,
  • The gypsum surface designated Class 0 fire rating,
  • The gypsum surface designated Class 1 surface spread of fire rating,
  • Zero Ozone Depletion Potential (ODP),
  • Global Warming Potential (GWP) <5,
  • Lightweight,
  • Provides internal drylining and insulation in just one fixing operation, giving faster completion times,
  • Provides an ideal surface for plaster skimming or jointing.
APPLICATION

Especially applicable to refurbishment and new build projects, wherever basic improvement in thermal performance is required. Suitable for drylining internal surfaces and is used for wall framing vertical support in various systems, DriLyner MF, DriLiner RF, DriLiner SI, DriLyner TL, GypLyner IWL, GypLyner UNIVERSAL.

CERTIFICATION
  • Quality Management System ISO 9001: 2008,
  • Environmental Management System ISO 14001: 2004,
  • Occupational Health & Safety management System OHSAS 18001: 2007,
  • Energy Management System Standard ISO 50001: 2011,
  • Responsible Sourcing Standard BES 6001: 2014 (Excellent).
