Ancon Teplo-BF-CT-25/300 Channel Wall Tie - Fixings for Ancon 25/14 Restraint System

Ancon Teplo-BF-CT-25/300 Channel Wall Tie - Fixings for Ancon 25/14 Restraint System

Length: 300mm
Open Cavity: 235-259mmmm

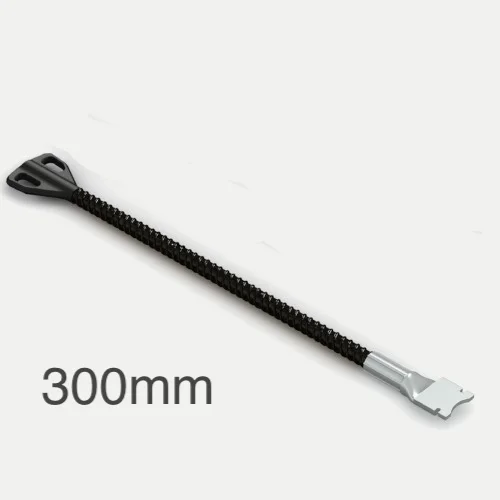

Ancon Teplo-BF-CT-25/300 Channel Wall Tie made of basalt fibres set in a resin matrix to provide a low thermal conductivity wall tie for 235-259mm open cavity for Ancon 25/14 channel to be fixed to an outer leaf of brickwork. The thermal efficiency these ties are excluded from U-value calculations to BS EN ISO 6946, minimising insulation thickness and wall footprint. The unique ribbed shank of this tie provides an effective moisture drip. This channel tie has a profiled stainless steel head at one end shaped to suit Ancon 25/14 channel and is placed in the channel by rotating through 90° and can be easily moved to the required position to be built into the masonry bed joint. The moulded safety end is placed into the outer leaf masonry bed joint.



BENEFITS
  • Quick installation,
  • Avoids compression of insulation,
  • Improved thermal bridging,
  • BBA approved.

Note: Channels and Screws are bought separately
