9mm Isocheck Screedcheck Underscreed XL9 Impact Improvement Mat - 1.2m x 50m roll

9mm Isocheck Screedcheck Underscreed XL9 Impact Improvement Mat - 1.2m x 50m roll
9mm Isocheck Screedcheck Underscreed XL9 Impact Improvement Mat - 1.2m x 50m roll
  • Product Code: A1-3291
  • Delivery Time: 1 - 2 days
  • Brand: Isomass
  • (Tech. support: 08458383389)
  • Model and Size: 1.2m x 50m - 60m2
Our ratings on 17-04-2025:
TrustPilot Review 4.7
4.7 out of 5 - Excellent
Google My Business Reviews
4.8 out of 5

9mm Isocheck Screedcheck Underscreed XL9 Impact Improvement Mat - 1.2m x 50m roll

Width: 1200mm
Length: 50000mm
Roll Coverage: 60m2

9mm Isocheck Screedcheck Underscreed XL9 system is designed to be placed directly below the screed within a masonry structural floor to isolate the screed from the structural sub floor, and provides sufficient impact absorption. The Isocheck Underscreed XL9 system features a 9mm closed cell non-cross linked foam layer. When installed correctly, the Isocheck Underscreed XL9 system will enable compliance with Approved Document E 2003 and subsequent amendments in 2004, 2010, 2013 and 2015.

CHARACTERISTICS
  • Underscored impact improvement mat,
  • Easy to handle and install,
  • Closed cells prevents water absorption,
  • Excellent acoustic performance,
  • High resistance to compression and creeping,
APPLICATION
  • Designed to be placed directly below the screed within a masonry structural floor.

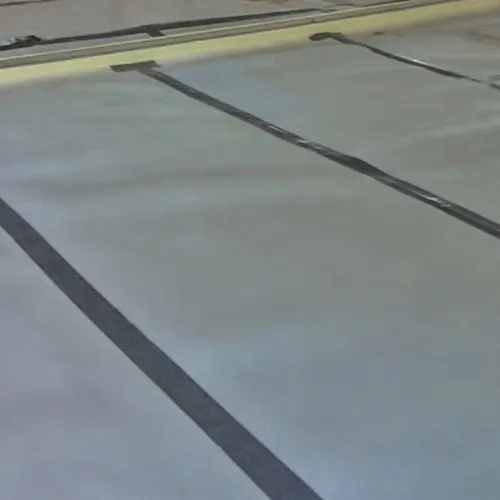

INSTALLATION
  • The floor surface should be swept free of any loose debris that may damage or bridge the system.
  • Isoocheck Screedcheck XL9 can be rolled up the wall or lapped and taped to a perimeter flanking strip.
  • Either option should allow a minimum 50mm to protrude above the intended FFL of the screed.
  • Adjoining roll edges should be butt-jointed jointed and sealed with a minimum 100mm wide jointing tape.
  • Services that penetrate the screed should be isolated by wrapping with Underscreed which again would be taped.
  • When trafficking the floor take care not to perform any unnecessary actions that may cause any of the taped joints to be forced apart.

CERTIFICATION
