90mm JCW Acoustic Batten 90T

90mm JCW Acoustic Batten 90T
Guide Price
90mm JCW Acoustic Batten 90T
Guide Price: £6.38 (£7.66 inc VAT)
To add to cart change quantity to minimum of 175. If you need less, ask for a price or add to a quote list.
  • Product Code: A1-2071
  • Delivery Time: 2 - 3 working days
  • Brand: JCW
  • (Tech. support: 08453402858)
  • Model and Size: 90x42x1800mm
  • Weight: 2.90kg
Our ratings on 23-04-2025:
TrustPilot Review 4.7
4.7 out of 5 - Excellent
Google My Business Reviews
4.8 out of 5
Show other thicknesses

90mm JCW Acoustic Batten 90T

Width: 42mm
Length: 1800mm
Weight: 2.9kg

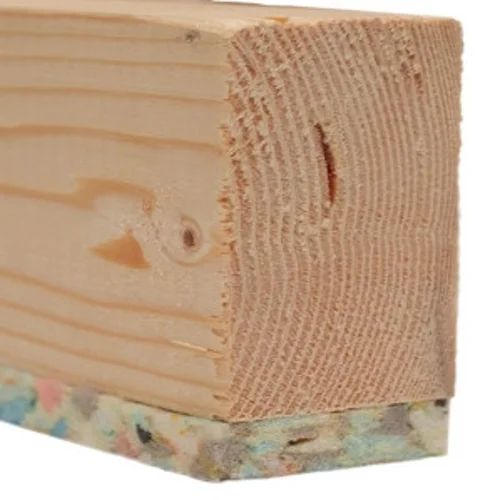

JCW Acoustic Batten 90T is a 10mm pre bonded open cell, recycled polyurethane resilient layer to a 70mm timber batten for use on timber subfloors. The JCW Acoustic Batten 90T offers an exceptional reduction in impact sound, whilst maintaining a high compression strength. They can be overlaid with an 18mm tongued and grooved chipboard and plywood or engineered hardwood flooring.

CHARACTERISTICS
  • Easy to install,
  • Raised floor space can be used for installing services,
  • Ideal for good impact sound improvement where height permits,
  • In refurbishments: overlaid onto flat timber or concrete floors

APPLICATION
  • New build
  • Refurbishments
  • Domestic upgrade
  • On timber subfloors


INSTALLATION
  • Sweep floor clear of debris,
  • Position JCW Perimeter Edging Strip at the base of all perimeter walls,
  • Lay a continuous run of JCW Acoustic Battens, foam side down, around the floor perimeter, leaving a 50mm gap between the battens and the walls,
  • Lay mineral wool quilt between the battens,
  • Lay the plasterboard plank to the battens, staggering the joints and ensuring that all short edges of plank rest centrally on a batten.
  • Butt the plasterboard plank up to the perimeter edging strip,
  • Lay the chipboard flooring sheets with the long edge across the battens. Short joints should be staggered and supported by extra sections of batten.
  • Screw fix through the chipboard sheets, plasterboard plank and into the battens at 300mm centres, ensuring that no screws penetrate into the battens resilient foam layer.
  • To ensure tight jointing, each tongue and groove is glued with JCW Waterproof PVA Adhesive. Chipboard can also be spot bonded to the layer of plank.
  • Remove tongues and grooves from chipboard sheets at the perimeter to ensure that only square cut edges butt up to the JCW Perimeter Edging Strip,
  • Any unavoidable gaps are filled with JCW Acoustic Sealant,
  • The JCW Perimeter Edging Strip is folded over the chipboard floor and trapped under the skirting board the excess is then trimmed to finish flush to the skirting board,
  • The completed floor should not be walked on for at least 48 hours to ensure the adhesive has fully cured.

CERTIFICATION

JCW Acoustic Batten 90T had been tested in Building Research Establishment Ltd, an UKAS accredited laboratory.
