8X2 Galvanised Expanded Metal Lath Sheet - 685x2438mm

8X2 Galvanised Expanded Metal Lath Sheet - 685x2438mm
Guide Price
8X2 Galvanised Expanded Metal Lath Sheet - 685x2438mm
Guide Price: £9.79 (£11.75 inc VAT)
  • Product Code: A1-2279
  • Delivery Time: 1 - 2 days
  • Brand: Teco
  • Model and Size: 685x2438mm
  • Weight: 1.50kg
Our ratings on 23-04-2025:
TrustPilot Review 4.7
4.7 out of 5 - Excellent
Google My Business Reviews
4.8 out of 5

8X2 Galvanised Expanded Metal Lath Sheet - 685x2438mm

Width: 685mm
Length: 2438mm
Weight: 1.5kg
8x2 Galvanised Expanded Metal Lath Sheet is mainly used for internal and external plaster when applied on suspended ceilings and walls. It is also suitable for encasing steel columns and beams, assisting in the protection from fire. Galvanised Steel EN 10346 DX51D Z275. Gauge: 0.4mm

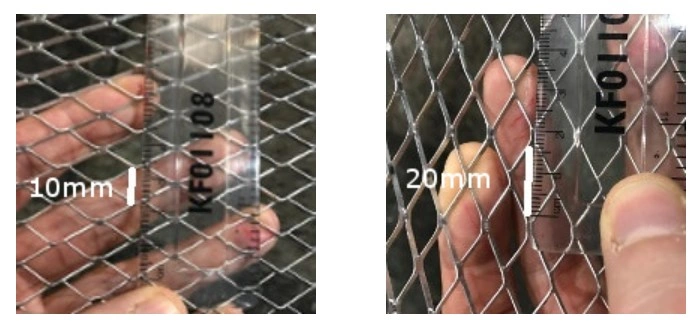

Hole width: 10mm                         Hole length: 20mm
Installation
  • Fix with the long way of mesh running from support to support, with all strands sloping downwards and inwards from the face of the coating. Always ensure when fixing that allowance is made for overlapping sheets by 50mm lengthways and 25mm widthways.
  • Timber Support - To connect to timber use plasterers nails & screws with washers or staples at 100mm centres. Start at the centre of the sheet and work out towards the edges. Always fix at an angle to allow lath to be pulled tight.
  • Metal Support - To fix steel channels, tie with 1.2mm tying wire at 100mm centres. Tie by creating a hairpin shape with the wire, then pull tight and twist. Take care that cut wire ends are not close to plaster surface.
  • To Solid Background - Expanded Metal Lath can be fixed to a solid background using a suitable fixing with an integral spacer/washer and a large diameter headed screw/nail that will keep the sheets firmly in place.
Note: Gloves should be worn as edges will be sharp.  Ensure that compatible corrosion resistant fixings are used; i.e. do not use galvanised fixings with stainless products.
