72.5mm Unilin Thin-R Thermal Liner XT/TL-MF - Mech Fix (60mm PIR Insulation bonded to 12.5mm Plasterboard)

72.5mm Unilin Thin-R Thermal Liner XT/TL-MF is a composite insulated panel of 60mm Unilin PIR core with foil faces bonded to 12.5mm tapered edge plasterboard for mechanically fixing to internal walls. Unilin XT/TL-MF is designed to provide high levels of thermal insulation and dry lining in one operation for suitable masonry walls, sloped rafters and ceilings in new build and refurbishment situations. Unilin XT/TL-MF is only suitable for mechanical fixed applications. The closed cell structure and gas tight facings provides excellent  thermal performance and moisture resistance. Unilin Thin-R products deliver genuine thermally robust performances and are supported with full third party assurances throughout the range.

Note: This product was formerly known as 72.5mm Xtratherm Thin-R Thermal Liner XT/TL-MF - Mech Fix Plasterboard

• High Thermal Performance,
• Reaction to fire: Euroclass B s1 d0,
• 12.5mm tapered edge plasterboard,
• Integral Vapour Control Layer,
• Low Emissivity Foil Facings,
• Energy Saving Trust Approved Product,
• HCFC/CFC Free, GWP <5,
• BRE Green Guide A+ Rated,
• Non-deleterious material,
• Closed cell structure – moisture resistant,

• Masonry walls
• Sloped rafters
• Ceilings

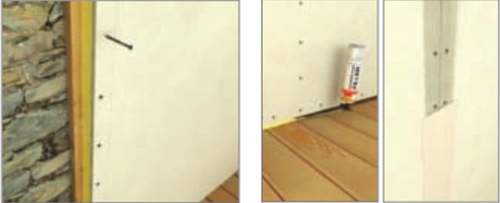

• Mechanical Fixing Unilin XT/TL-MF Fix a pre-treated timber batten horizontally at ceiling level and another 20mm above the finished floor level.
• Fix vertical battens at max 600mm centres.
• Ensure battens are wide enough to offer 20mm support to all four edges of the plasterboard.
• Pack battens if necessary to level the wall.
• Trim all openings and service penetrations with timber battens.
• Insulation should be cut back to accommodate an adjoining panel at external corners.
• Lift the Unilin XT/TL-MF Thermal Liner into position using wedges on the floor.
• Screws should be fixed to the timber batten at 150mm centres, at least 12mm in from the board edge. The fixings (thermally broken) should penetrate at least 25mm into the batten.
• Installation must be in accordance with good dry lining practice. BS 8212:1988 should be considered, careful setting out and planning is essential, fill any gaps with foam filler.

CERTIFICATION

• ISO 9001 Quality Management Systems

• ISO 14001 Environmental Management Systems
• ISO 45001 Occupational Health & Safety Management System
