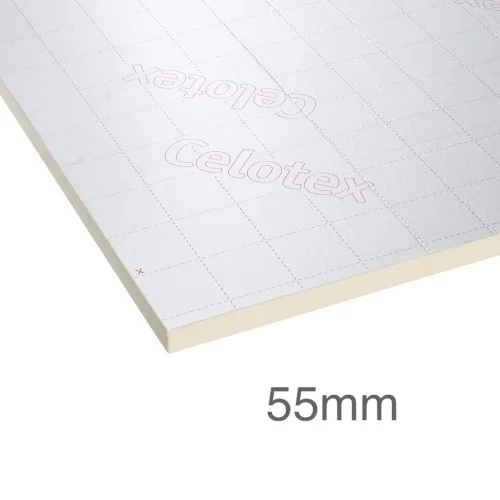

55mm Celotex CW4000 Rigid PIR Cavity Insulation Board (pack of 9)

55mm Celotex CW4000 Rigid PIR Cavity Insulation Board (pack of 9)
55mm Celotex CW4000 Rigid PIR Cavity Insulation Board (pack of 9)
  • Product Code: A1-160
  • Delivery Time: 1 - 5 working days
  • Brand: Celotex
  • (Tech. support: 01473820850)
  • Model and Size: 1200 x 450mm - 4.86m2 55mm
Product discontinued. Click Get Best Price to request a quotation and we will recommended an equivalent product.
Our ratings on 17-04-2025:
TrustPilot Review 4.7
4.7 out of 5 - Excellent
Google My Business Reviews
4.8 out of 5
Show other thicknesses

55mm Celotex CW4000 Rigid PIR Cavity Insulation Board (pack of 9)

Width: 450mm
Length: 1200mm
Pack Coverage: 4.86m2
Weight/m2: 3.11kg
Thermal Conductivity: 0.023W/mK
R-Value: 2.5m2K/W
Compressive Strength: 120kPa
Surface Spread of Flame: Class 1

55mm Celotex CW4000 is an insulation board aimed specifically at partial fill cavity wall applications. It comprises a polyisocyanurate rigid foam insulation core, with a thermal conductivity of 0.022 W/mK and low emissivity aluminium foil facings on both sides. CW4000 is manufactured from rigid polyisocyanurate (PIR) using a blend of blowing agents that have zero ozone depletion potential (zero ODP) and low global warming potential (GWP).

Note: Would be known as CW3000 from January 2018.

APPLICATION

Celotex CW4000 is specifically for use in partial-fill cavity wall applications.


CHARACTERISTICS
  • Is easy to fit between wall ties using cavity tie clips for retention
  • Comes in thicknesses ranging from 25mm-100mm
  • Comes in conveniently sized boards for installation between cavity wall ties
  • Includes low emissivity foil facings giving improved thermal insulation performance within cavity air spaces
  • Has excellent dimensional stability
  • Provides reliable long term energy savings for buildings
CERTIFICATION
  • The insulation component of Celotex CW4000 is A+ rated when compared to the BRE Green Guide 2008
  • Celotex CW4000 is CFC/HCFC free with zero ozone depletion potential (ODP) and low global warming potential (GWP)
  • Celotex CW4000 received CE marking compliance to BS EN 13165:2001
  • The board is manufactured in accordance with quality management systems with BS EN ISO 9001:2000 by Celotex Limited
