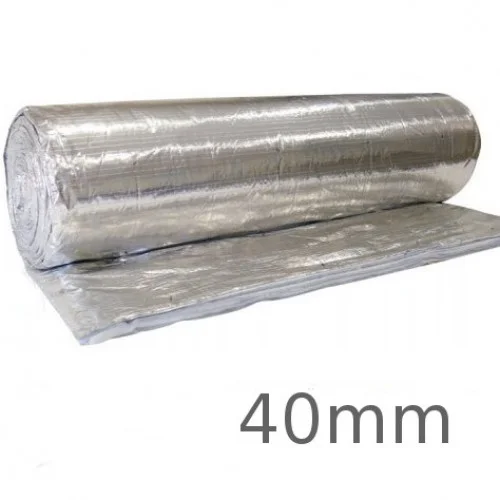

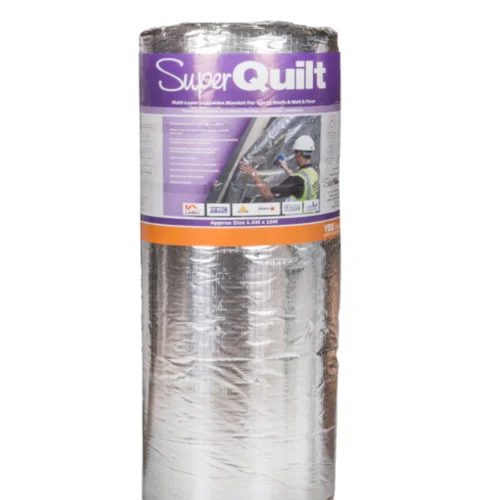

40mm YBS SuperQuilt - Multi-layer Insulation for Roofs, Walls and Floors - 1.2m x 10m roll.
40mm YBS SuperQuilt - Multi-layer Insulation for Roofs, Walls and Floors - 1.2m x 10m roll.
Price: £129.52 (£155.42 inc VAT)
Price per m2: £10.79/m2 (£12.95 inc VAT)
- Product Code: A1-2662
- Delivery Time: 1-3 working days
- Brand: YBS Insulation
- Model and Size: 1.2m x 10m - 12m2 - Free delivery
- Weight: 10.00kg
Our ratings on 22-11-2024:
4.7 out of 5 - Excellent
4.8 out of 5
40mm YBS SuperQuilt - Multi-layer Insulation for Roofs, Walls & Floors - 1.2m x 10m roll
Width: 1200mm
Weight/m2: 0.8kg
Weight: 10kg
R-Value: 1.52m2K/W
Fire Rating (Reaction to Fire): E

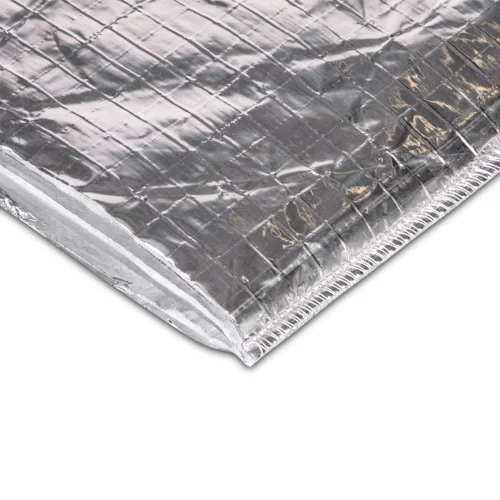

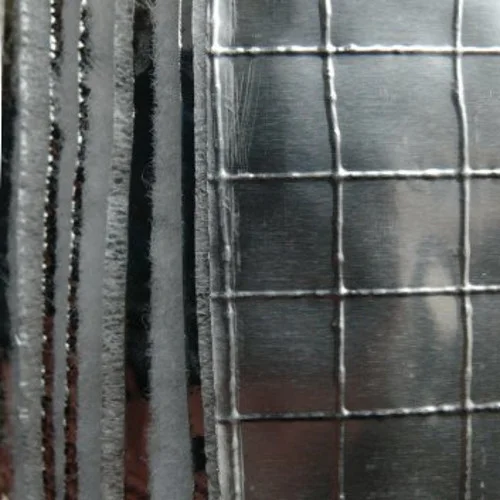

40mm YBS SuperQuilt is a flexible, easy to install, 1.2m wide multi-layer insulation blanket for roofs, walls & floors that effectively deals with all forms of energy transfer, offering tremendous thermal benefits. It consists of 19 layers of material including reflective foil, expanded polyethylene & polyester wadding. SuperQuilt is thermally tested in accordance with EN 16012 achieving a high thermal resistance of 2.50mK/W, when there is a 25mm air cavity either side of the material. In winter, SuperQuilt effectively deflects infra-red radiation and reflects heat back into the building and cold out, and in summer, SuperQuilt becomes a very effective barrier to solar overheating, preventing the accumulation of heat within the building and reducing the need for artificial cooling systems.
CHARACTERISTICS
- Cost effective,
- 2 in 1 solution - insulation and vapour control membrane,
- Reduces construction depth,
- Reduces risk of condensation,
- Non degradable - maintains thermal performance and product integrity,
- High thermal resistance of 2.50mK/W,
- Effective solar over-heating barrier,
- Effective in summer and winter,
- Lightweight, thin & flexible,
- Fast and simple installation,
- Tear Resistant
APPLICATION
- Roofs,
- Walls
- Floors
INSTALLATION
- SuperQuilt must be installed with a 50mm overlap with all joints taped with 75mm foil tape.
- It can be cut with a craft knife or a sharp pair of scissors.
- It can be easily fixed with staples at regular intervals. Minimum 14mm stainless steel or galvanised staples are recommended.
- SuperQuilt is most effective with a minimum 25mm air gap on either side.
- Battens can be used to create this gap.
- No protective clothing/handling required.
An example installation
CERTIFICATION
- Meets requirements of L1A and L1B 2010 addition,
- In accordance with BR443,
- Thermally tested in accordance with EN16012
SuperQuilt_BBA_Certification.pdf
