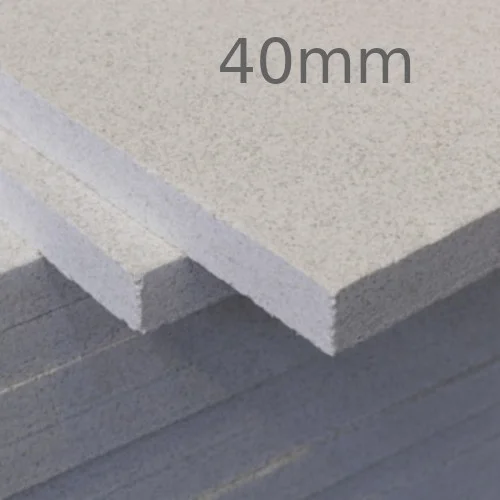

40mm Promat Monolux 500 Fire Protection Board

40mm Promat Monolux 500 Fire Protection Board is a rigid insulation material, designed to maintain stable strength and rigidity when exposed to max temperatures of 500C. No mineral fibres or asbestos is used in the manufacturing process. The board can be easily machined to close tolerances. Monolux 500 calcium silicate insulation board has wide application in processes plants and as single layer insulation for driers and ovens. Its low thermal conductivity and low shrinkage makes it suitable for industrial applications, whereas if increased durability is required, the surface can be adequately treated.

Promat Monolux 500 Fire Protection Board is applicable in various fire resisting constructions, including ovens and dryers, structural thermal breaks, boiler and flue gas baffles, heat shielding and load bearing pipe supports.

The product should be properly dried and conditioned, before installed at elevated temperatures environment. It should be stored horizontally in dry conditions or alternatively vertical only if the edges are properly protected.

The boards are fixed to a non-combustible background, such as steel stud or masonry framework at 300mm fixing centres. If the boards are installed directly into brick or block, it is recommended that metal fixings and plugs are used. Boards are pre-drilled with slightly oversized holes (in accordance with the screw dimensions), whereas the screws should not be fixed too tightly, so that some thermal movement is enabled. For additional strength, suitable metallic inserts can be used, otherwise standard PK screws are sufficient. Depending on the boards thickness, it is recommended that a minimal gap of 50 mm between the boards and appliance is left. If additional thickness of 50mm is required, it can be achieved by gluing the boards together via adequate high quality adhesives.

Plastering includes adding a sealing coat of universal primer and once it is dry, another layer of bonding coat is applied and covered with a primer while still wet and tacky. When adding tiling, the boards should be properly sealed on all sides with a PVA sealant or diluted tile adhesive. When adding decorative coatings, these should be in accordance with the applicable regulations in the terms of fire resistance and surface spread of flame rate.
