Insulated Render Systems

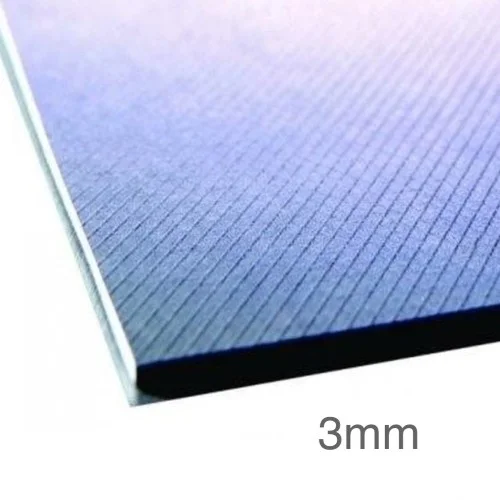

3mm JCW Acoustic Barrier Mat

3mm JCW Acoustic Barrier Mat
3mm JCW Acoustic Barrier Mat
Guide Price: £76.15 (£91.38 inc VAT)
Price per m2: £15.86/m2 (£19.04 inc VAT)
To add to cart change quantity to minimum of 10. If you need less, ask for a price or add to a quote list.
15 or more £72.35 (£86.82 inc VAT)
20 or more £69.82 (£83.78 inc VAT)
  • Product Code: A1-1959
  • Delivery Time: 2 - 3 working days
  • Brand: JCW
    • (Tech. support: 08453402858)
  • Model and Size: 1200x4000mm - 4.80m2
  • Weight: 36.00kg
Our ratings on 23-12-2024:
TrustPilot Review 4.7
4.7 out of 5 - Excellent
Google My Business Reviews
4.8 out of 5
Get Best Price
Ask question about this product. For price use 'Add to Quote' button. Checkout
Add to Quote
Compare View quote list
Show other thicknesses

3mm JCW Acoustic Barrier Mat

Width: 1200mm
Roll coverage: 4.80
Density: 2500kg/m3
Weight/m2: 7.5kg
Weight: 36kg

3mm JCW Acoustic Barrier Mat is an acoustic barrier matting that offers very good airborne performance across the frequency range. It is a very versatile and dense product that is used for a wide range of applications where airborne sound reduction is required. The most common installation areas are floors, walls & ceilings.

CHARACTERISTICS
  • Very quick and simple to install,
  • Noticeable improvements will be gained when bonding barrier matting between two layers of Plasterboard on walls & ceilings or pinning on to stud work or joists prior to plasterboard fixing,
  • Noticeable airborne improvement gain with minimal height loss when 2 barrier matting layers are laid on the floor in opposite directions,
  • Ideal as a separating curtain wall between offices above walls,
  • Perfect product for dampening steelwork, ducting and machinery casings etc,
  • Can be loose laid,
  • Can be partially or fully bonded to the sub-floor.

APPLICATION
  • New build
  • Refurbishments
  • Domestic upgrade
  • On floors, walls & ceilings.
INSTALLATION
Floors
  • Cut the first row of matting continuously across the room up to the wall edges and if possible beneath the skirting boards if fitted.
  • The second and subsequent rows should either be tightly butt edged or overlapped by 25mm to ensure optimum airborne performance.
  • As JCW Barrier Matting is an impervious product the best adhesive to use for an instant bond is either a Spray Contact Adhesive for partial bond or trowel/spreader applied Contact Adhesive if full bonding is required.
  • Contact adhesive should be spread immediately once applied to the JCW Barrier Matting.
Walls
  • The JCW Barrier Matting can be installed in continuous vertical lengths with vertical joints centrally between the studs or metal work.
  • Cut the first vertical length and secure centrally between the studs or metal work using a few Clout Nails.
  • Then fix the plasterboard/s over ensuring all plasterboard joints and/or minor gaps are sealed with JCW Acoustic Sealant/Mastic.
CERTIFICATION

It has been independently tested in a UK Verified independent UKAS accredited laboratory. Pre-completion testing is not required.
