35mm Monarfloor Tri-Deck - Direct to Joist Floor Board
35mm Monarfloor Tri-Deck - Direct to Joist Floor Board
- Product Code: A1-2100
- Delivery Time: 1 - 2 days
- Brand: Icopal
- Model and Size: 2400x600mm - 1.44m2
- Weight: 30.50kg
Our ratings on 25-11-2024:
4.7 out of 5 - Excellent
4.8 out of 5

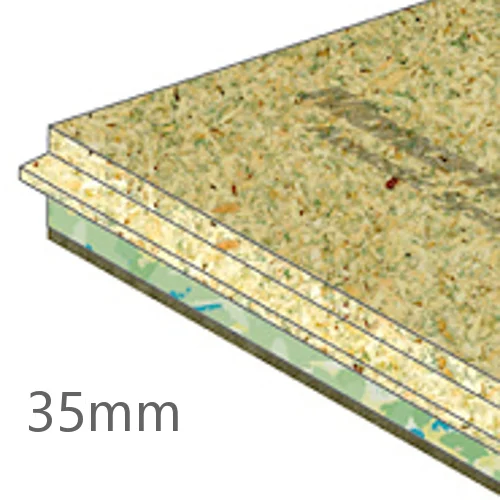

35mm Monarfloor Tri-Deck - Direct to Joist Floor Board
Thickness: 35mm
Width: 600mm
Length: 2400mm
Weight/m2: 21.18kg

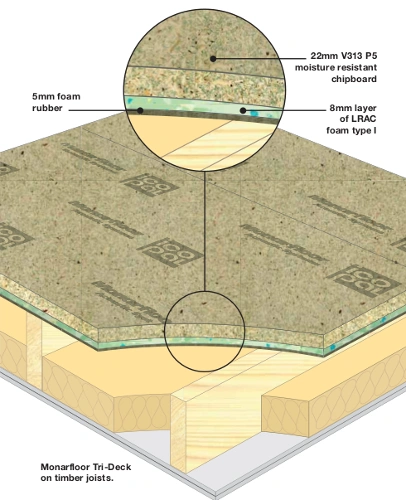

35mm Monarfloor Tri-Deck is a resilient overlay platform direct to joist floor system designed to reduce sound transmission through timber floors where the existing timber floor will be removed but access to work on the ceiling below will be resticted. It consists of a 5mm layer of foam rubber bonded to an 8mm layer of low resonance acoustic chip (LRAC) foam type I, which is then bonded to 22mm V313 P5 moisture resistant chipboard.
Performance Data:
- DnT,w: 55dB,
- DnT,w + Ctr: 46dB,
- LnT,w: 56dB
CHARACTERISTICS
- Direct to Joist Application,
- Applications for existing timber floors,
- No need for an acoustic ceiling,
- Supports floor loadings defined in BS: 6399-1: 1996,
- BBA Certified,
- Flame retardant.

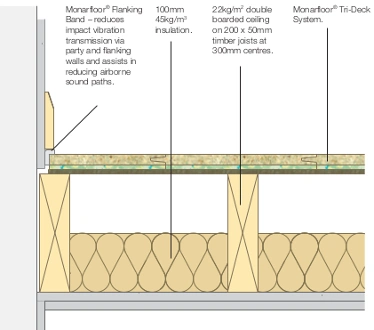

INSTALLATION
- Flank all perimeter with Monarfloor Flanking Band.
- Lay Monarfloor Tri-Deck directly over the floor joists in a broken bond pattern with all joints supported and glued.
- Install skirting and trim off excess Flanking Band
