35mm Acuphon PhoneDeck Tri35s - Structural Acoustic Overlay Board
35mm Acuphon PhoneDeck Tri35s - Structural Acoustic Overlay Board
- Product Code: A1-4651
- Delivery Time: 2 - 3 working days
- Brand: Acuphon (Tech. support: : 01904900194)
- Model and Size: 600x2400mm - 1.44m2
- Weight: 24.30kg
Our ratings on 23-12-2024:
4.7 out of 5 - Excellent
4.8 out of 5
35mm Acuphon PhoneDeck Tri35s - Structural Acoustic Overlay Board
Thickness: 35mm
Width: 600mm
Length: 2400mm
Board Coverage: 1.44m2
Density: 482kg/m3
Weight/m2: 16.86kg
Weight: 24.3kg
Airbourne sound insulation: 58dB
Impact Sound Insulation: 52dB

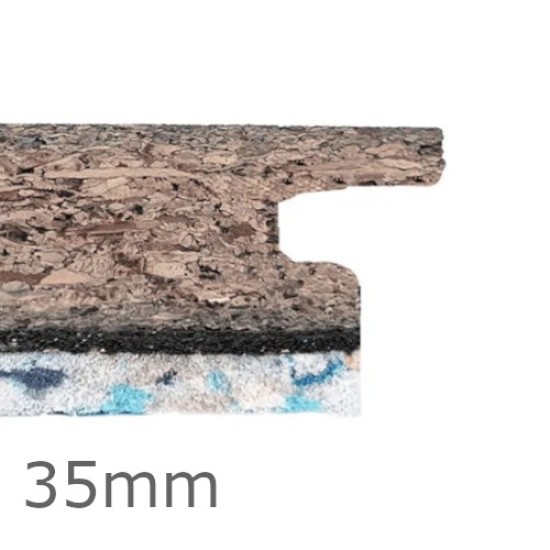

35mm Acuphon PhonoDeck Tri35s is a high performance 3 layer structural acoustic overlay board that can be laid directly on top of joists to create a floating floor. PhonoDeck Tri35s comprises of a 22mm tongue & groove high density chipboard pre-bonded to a layer of 3mm GenieMat RST and a low resonance flexible recycled reconstituted resilient 10mm foam underlayer that helps to comply with Part E of Building Regulations. PhonoDeck Tri35s is an acoustic floating floor solution offering high performance impact and airborne noise reduction.
APPLICATION
- Suited for timber and steel joisted floors
CHARACTERISTICS
- Consists of 22mm chipboard, 3mm Geniemat, 10mm Chipfoam
- Easy installation T&G edge,
- Easy to cut, drill and install,
- Maintenance-free and cost-effective;
- Excellent acoustic properties,
- Superior impact noise reduction,
- Excellent airborne sound reduction,
- Suitable for both 400mm and 600mm joist centres,
- Ceramic tiles can be laid straight on top,
- 100% recycled resilient layer,
- Manufactured in the UK.
CERTIFICATION
PhonoDeck_Tri35s_Datasheet.pdf
