32mm JCW Acoustic Soundboard 32 Plus - Cement Particle based Acoustic Overlay Board
Guide Price
32mm JCW Acoustic Soundboard 32 Plus - Cement Particle based Acoustic Overlay Board
Guide Price: £47.62 (£57.14 inc VAT)
100 or more £43.29 (£51.95 inc VAT)
150 or more £39.68 (£47.62 inc VAT)
200 or more £36.63 (£43.96 inc VAT)
- Product Code: A1-4343
- Delivery Time: 2 - 3 working days
- Brand: JCW (Tech. support: 08453402858)
- Model and Size: 1200x600mm - 0.72m2
- Weight: 21.77kg
Our ratings on 02-07-2024:
4.7 out of 5 - Excellent
4.8 out of 5

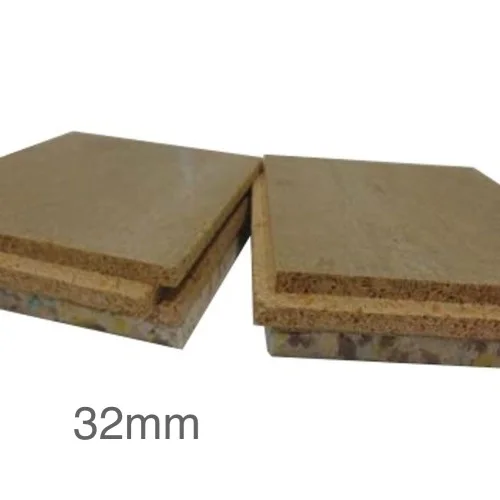

32mm JCW Acoustic Soundboard 32 Plus - Cement Particle based Acoustic Overlay Board
Width: 600mm
Length: 1200mm
Board Coverage: 0.72m2
Density: 945kg/m3
Weight/m2: 30.24kg
Weight: 21.77kg

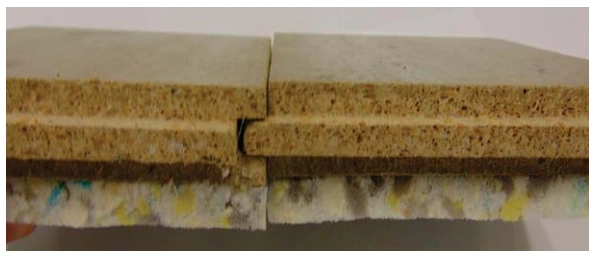

32mm JCW Acoustic Soundboard 32 Plus is an enhanced performance cement particle based acoustic overlay board for timber floors. It is designed for use as a floating overlay floor supported on decking. Soundboard 32 Plus is a durable and hardwearing acoustic decking solution. Soundboard 32 Plus is produced combining an 22mm tongue and grooved cement particle board which is laminated to a 10mm acoustic resilient layer.
CHARACTERISTICS
- Ideal for refurbishments where floor height is an issue,
- Cement particle board ready for final floor installation,
- Economical and easy to fit,
- High performance impact and airborne sound reduction,
- Hard Wearing and Durable,
- Suitable for new builds with conventional timber joists, I-joists and metal web joists.
- Suitable for conversion projects,
- Suitable for underfloor heating
APPLICATION
- New build
- Refurbishments
- Domestic upgrade
- On timber floors
INSTALLATION
- JCW Acoustic Soundboard 32 Plus boards are best laid towards the end of the project to protect from general trades, high floor loading and moisture leading to expansion.
- The boards are laid as a floating floor, without any mechanical fixings into the sub-floor. They are glued together as they are laid.
- Ensure that the floor surface is flat, dry, and free from all debris.
- Ensure that the wall surfaces are prepared - plaster skimmed or plaster boarded down to the level of the sub-deck and that there are no gaps at wall edges.
- Apply 5mm foam flat wall JCW Perimeter Edging Strip or L shaped strips to the base of all perimeter walls allowing approximately 15mm excess foam above the finished acoustic board height. This can later be folded down on top of the acoustic floor surface to isolate the skirting boards.
- Remove any tongues at the wall edges, then cut & scribe the first corner board into place and butt up to the Edging Strip. Do not compress the JCW Perimeter Edging Strip.
- Ensure all T&G board joints must be fully adhesive bonded using a recommended adhesive.
- Proceed with the second and successive rows ensuring that all board joints are staggered. The last row of boards will require accurate cutting & scribing to butt up to the wall.
- Any minor gaps between the JCW Perimeter Edging Strip and the acoustic board must be filled with JCW Acoustic Sealant/Mastic.
- It is imperative that the JCW Perimeter Edging Strip is not compressed in order to maintain acoustic isolation and an allowance for expansion.
- At the door threshold leave a 5mm gap between the adjoining acoustic boards and fill with JCW Acoustic Sealant. If the sub-floor at the doorways is not flat, the acoustic boards may require additional base support to reduce compressive joint movement. Additionally the surface joints could be sanded up to 5mm to level if required.
- The finished floor should not be walked on for a period of up to 24 hours to allow the adhesive to cure undisturbed.
- Ensure that the board joint adhesive has fully cured prior to overlaying any final floor covering.
CERTIFICATION
JCW Acoustic Soundboard 28 Plus board has been independently tested in a UK Verified independent UKAS accredited laboratory.
