32.5mm JCW Acoustic Silent Board Plus - Enhanced Acoustic Wall Liner
Guide Price
32.5mm JCW Acoustic Silent Board Plus - Enhanced Acoustic Wall Liner
Guide Price: £74.68 (£89.62 inc VAT)
Price per m2: £51.86/m2 (£62.23 inc VAT)
To add to cart change quantity to minimum of 15. If you need less, ask for a price or add to a quote list.
- Product Code: A1-1999
- Delivery Time: 2 - 3 working days
- Brand: JCW (Tech. support: 08453402858)
- Model and Size: 1200x1200mm - 1.44m2
- Weight: 40.14kg
Our ratings on 02-04-2025:
4.7 out of 5 - Excellent
4.8 out of 5
32.5mm JCW Acoustic Silent Board Plus - Enhanced Acoustic Wall Liner
Width: 1200mm
Length: 1200mm
Board Coverage: 1.44m2
Density: 858kg/m3
Weight/m2: 27.88kg
Weight: 40.14kg

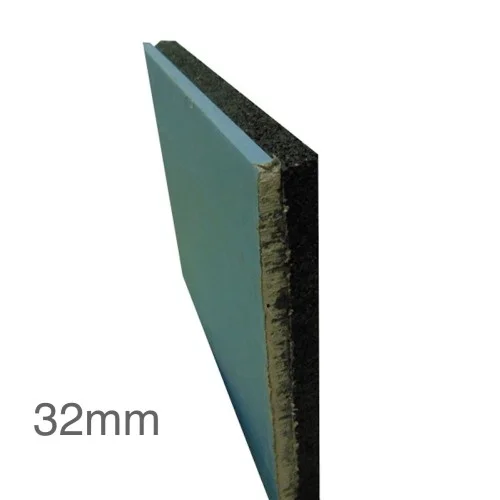

32.5mm JCW Silent Board Plus is an enhanced acoustic wall liner manufactured by laminating a 20mm acoustic resilient layer to a 12.5mm layer of acoustic grade plasterboard to drastically reduce sound transmission. It can be applied to either masonry or stud walls and is also suitable to reduce flanking noise up and down walls.
- Easy as a quick to install,
- Solution directly onto walls,
- Simple to apply to lightweight wall structures or existing plasterboard so there's no stud work required,
- Ensures little compromise on living space without compromising high performance,
- Compliant with Part E building regulations,
- Could be used as a remedial solution for sound test failures,
- Fire retardant,
- 100% of the material has been recycled,
- Flexible, once installed the plasterboard surface is ready for any decorative finish.
- New build
- Refurbishments
- Domestic upgrade
- On masonry or stud walls

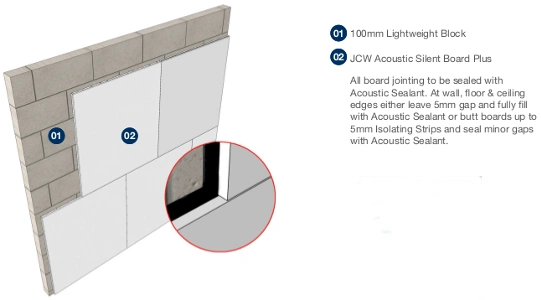

- All skirting and coving is to be removed.
- Walls should be flat and/or prepared to accept the JCW Silent Boards.
- Start fitting from either right hand or left hand corner. Plan the bottom row to allow for cuts and staggered joints on all of the rows above.
- JCW Silent Boards must be isolated from the surrounding floor, ceiling and walls. Use JCW Rubber Isolation Strips between the JCW Silent Boards and the surrounding surfaces.
- Any minor gaps can be filled with JCW Acoustic Sealant.
- Alternatively, use 5mm spacers between the JCW Silent Boards and surrounding surfaces, then once the wall is completed, remove the spacers and fully the space with JCW Acoustic Sealant.
- Silent Board Plus is bonded to the wall using JCW Approved Bonding Adhesive. The adhesive should be applied to the rubber resilient layer in a 'snake method.'
- Once the first JCW Silient Board is fitted in position, continue along the bottom row filling any gaps between the boards with JCW Acoustic Sealant.
- JCW Silent Boards can be plaster skimmed or covered with heavy duty building paper if preferred.
JCW Acoustic Silent Board has been independently tested in a UK Verified independent UKAS accredited laboratory.
JCW Silent-Board.pdf
