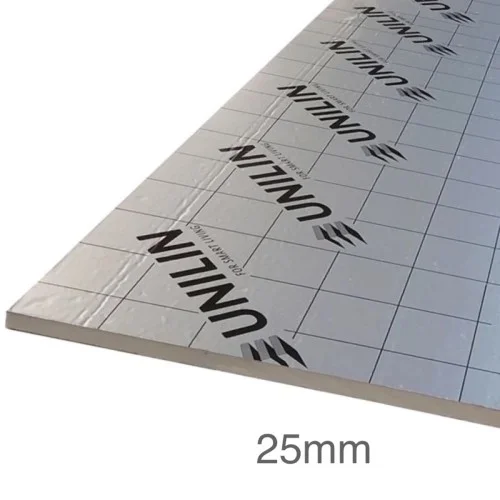

25mm Unilin Thin-R FR/ALU Flat Roof PIR Insulation Board (pack of 12)

25mm Unilin Thin-R FR/ALU Flat Roof PIR Insulation Board (pack of 12)

Length: 2400mm
Width: 1200mm
Thickness: 25mm
Pack Quantity: 12
Board Coverage: 2.88m2
Pack Coverage: 34.56m2
Density: 32kg/m3
Weight/m2: 0.8kg
Weight: 27.65kg
Thermal Conductivity: 0.022W/mK
R-Value: 1.14m2K/W
Compressive Strength: 150kPa
Fire Rating (Reaction to Fire): E

25mm Unilin Thin-R FR/ALU Flat Roof PIR Insulation Board is a flat roof insulation with enhanced vapour resistant performance. Unilin Thin-R FR/ALU board is faced with low emissivity aluminium facings both sides. Rot proof and will remain effective for the life span of the building. Unilin Thin-R FR/ALU high thermal performance boards are compatible with mechanically fixed single ply systems and loose laid ballasted systems. This board i not suitable for applications with built-up bitumen based roofing or mastic asphalt systems.

Note: This board was formerly known as 25mm Xtratherm Thin-R FR/ALU Flat Roof PIR Insulation Board

APPLICATION
  • Flat roofs

CHARACTERISTICS
  • Superior performance PIR foam core,
  • Can be readily cut using a sharp knife or fine toothed saw,
  • Vapour-tight aluminium facings on both sides,
  • Effective thermal performance,
  • Limits the risk of condensation,
  • For new build or refurbishment,
  • Will have life as long as the roof waterproof covering,
  • Rot proof and will remain effective for the life span of the building.
CERTIFICATION
