24mm Acuphon PhonoDeck 24 - Acoustic Overlay Board
24mm Acuphon PhonoDeck 24 - Acoustic Overlay Board
- Product Code: A1-4649
- Delivery Time: 2 - 3 working days
- Brand: Acuphon (Tech. support: : 01904900194)
- Model and Size: 600x2400mm - 1.44m2
- Weight: 16.10kg
Our ratings on 28-02-2025:
4.7 out of 5 - Excellent
4.8 out of 5
24mm Acuphon PhonoDeck 24 - Acoustic Overlay Board
Width: 600mm
Length: 2400mm
Board Coverage: 1.44m2
Density: 467kg/m3
Weight/m2: 11.2kg
Weight: 16.1kg

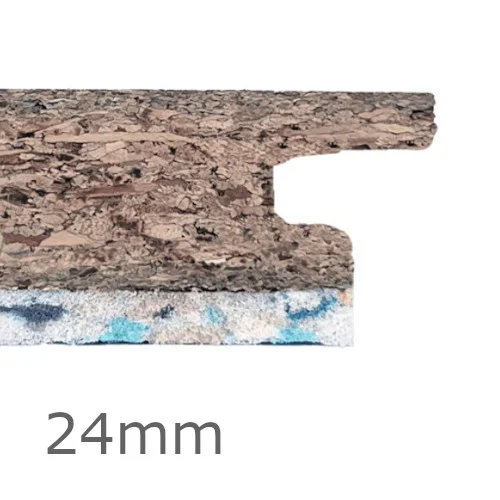

24mm Acuphon PhonoDeck 24 is a high performance 18mm moisture resistant T&G chipboard bonded to 6mm recycled reconstituted chipfoam impact layer provides an impact noise reduction floating floor solution. PhonoDeck 24 is a non-structural acoustic overlay flooring board suitable for use on new or existing timber floors and concrete subfloors in new build and refurbishment applications. Manufactured in the UK.
APPLICATION
- Suited for timber and steel joisted floors, concrete floors and buildup decking
CHARACTERISTICS
- Easy installation T&G edge,
- Easy to cut, drill and install,
- Maintenance-free and cost-effective;
- Excellent acoustic properties,
- Superior impact noise reduction,
- Excellent airborne sound reduction,
- 100% recycled resilient layer,
- Manufactured in the UK.
CERTIFICATION
PhonoDeck_24_Datasheet.pdf
