17mm Acuphon PhonoDeck Micro 17 Slimline - 1200mm x 600mm - Acoustic Overlay Board
17mm Acuphon PhonoDeck Micro 17 Slimline - 1200mm x 600mm - Acoustic Overlay Board
- Product Code: A1-4774
- Delivery Time: 2 - 3 working days
- Brand: Acuphon (Tech. support: : 01904900194)
- Model and Size: 600x1200mm - 0.72m2
- Weight: 9.10kg
Our ratings on 28-02-2025:
4.7 out of 5 - Excellent
4.8 out of 5
17mm Acuphon PhonoDeck Micro 17 Slimline - 1200mm x 600mm - Acoustic Overlay Board
Width: 600mm
Length: 1200mm
Board Coverage: 0.72m2
Density: 382kg/m3
Weight/m2: 6.5kg
Weight: 9.1kg

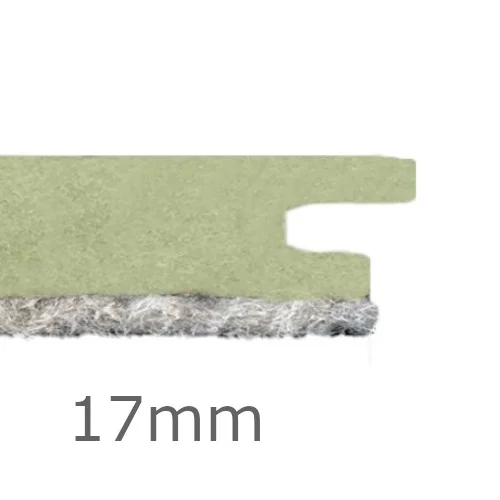

17mm Acuphon PhonoDeck Micro 17 Slimline is a high performance moisture resistant T&G MDF board bonded to recycled reconstituted chipfoam impact layer provides an impact noise reduction floating floor solution. PhonoDeck 28 is a non-structural acoustic overlay flooring board suitable for use on new or existing timber floors and concrete subfloors in new build and refurbishment applications. Manufactured in the UK.
APPLICATION
- Suited for timber and steel joisted floors, concrete floors and buildup decking
CHARACTERISTICS
- Easy installation T&G edge,
- Easy to cut, drill and install,
- Maintenance-free and cost-effective;
- Excellent acoustic properties,
- Superior impact noise reduction,
- Excellent airborne sound reduction,
- 100% recycled resilient layer,
- Manufactured in the UK.
CERTIFICATION
PhonoDeck_Micro_17_Technical_Datasheet.pdf
