175mm Ancon AC 31C Wall Tie - Remedial Wall Tie

175mm Ancon AC 31C Wall Tie - Remedial Wall Tie
- Product Code: A1-5384
- Delivery Time: 2 - 3 working days
- Brand: Ancon (Tech. support: : +44(0)1142381238)
- Model and Size: 175mm
Our ratings on 31-03-2025:

4.7 out of 5 - Excellent


4.8 out of 5
175mm Ancon AC 31C Wall Tie - Remedial Wall Tie
Length: 175mm

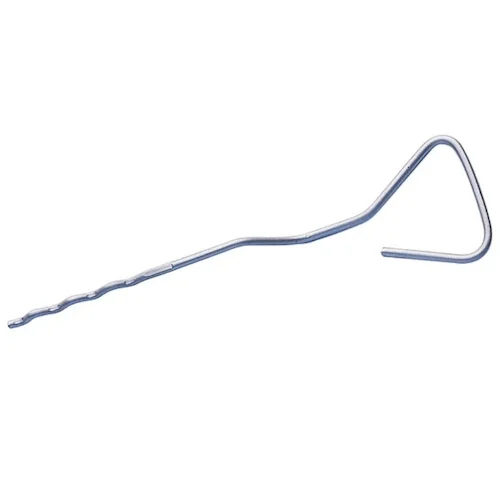

175mm AC 31 Wall Tie is a masonry remedial wall tie for tying together two leaves of solid walls, where bricks are removed then replaced in the outer leaf. The wavy end is resin-bonded into the inner leaf in a 10mm Ø hole. The triangular end sits in the bed joint. Ancon AC 31C wall tie is similar to the AC 31 but cranked by 25mm to aid fixing to the inner leaf.
CHARACTERISTICS
- Masonry-to-masonry remedial wall tie,
- Cranked by 25mm to aid fixing to the inner leaf.
Brand: Ancon
Model and Size: 225mm
Delivery Time: 2 - 3 working days
225mm Ancon 63 Resin/Mechanical Wall Tie is a masonry remedial wall tie for use for tying together two leaves of solid walls. This RM63 tie has mechanical expanders at one end and a grooved end at the other end to be fixed to the inner leaf that is perforated, or of low-density or friable ..
Brand: Ancon
Model and Size: SD25/175
Delivery Time: 2 - 5 working days
Ancon SD25/175 Channel Wall Ties with a safety ended v drip for 110-134mm open cavity for Ancon 25/14 channel to be fixed to an outer leaf of brickwork. They are placed in the channel by rotating through 90° and can be easily moved to the required position to be built into the masonry bed joint..
Brand: Ancon
Model and Size: SD25/150
Delivery Time: 2 - 5 working days
Ancon SD25/150 Channel Wall Ties with a safety ended v drip for 85-109mm open cavity for Ancon 25/14 channel to be fixed to an outer leaf of brickwork. They are placed in the channel by rotating through 90° and can be easily moved to the required position to be built into the masonry bed joint...
Brand: Ancon
Model and Size: 310mm
Delivery Time: 1-3 working days
310mm Ancon Teplo-BFR Wall Tie is ideal where a low thermal conductivity restraint fixing is required between a masonry outer leaf and an in-situ structure. This ultra-low thermal conductivity wall tie can be fixed to concrete, masonry, steel and timber substrates. Ancon Teplo-BFR Wall Tie is a 7mm ..
Brand: Ancon
Model and Size: CFS120
Delivery Time: 2 - 5 working days
Ancon CFS120 Concrete Fixing Screws is used to fix an outer leaf of brickwork through any kind of insulation to a concrete wall. These zinc plated carbon steel screws should be used in combination with Ancon Compression Sleeves in the same length as the insulation thickness being used..
Brand: Ancon
Model and Size: Teplo-BF-CT-25/375
Delivery Time: 2 - 5 working days
Ancon Teplo-BF-CT-25/375 Channel Wall Tie made of basalt fibres set in a resin matrix to provide a low thermal conductivity wall tie for 310-334mm open cavity for Ancon 25/14 channel to be fixed to an outer leaf of brickwork. The thermal efficiency these ties are excluded from U-value calculations t..
