112.5mm Xtratherm Safe-R Thermal Liner SR/TB-MF (100mm Phenolic Core and 12.5mm Plasterboard) - Mechanical Fixing (pack of 4)

112.5mm Xtratherm Safe-R Thermal Liner SR/TB-MF (100mm Phenolic Core and 12.5mm Plasterboard) -  Mechanical Fixing (pack of 4)
112.5mm Xtratherm Safe-R Thermal Liner SR/TB-MF (100mm Phenolic Core and 12.5mm Plasterboard) - Mechanical Fixing (pack of 4)
Guide Price: £586.11 (£703.33 inc VAT)
Price per m2: £50.88/m2 (£61.05 inc VAT)
2 or more £567.14 (£680.57 inc VAT)
4 or more £548.23 (£657.88 inc VAT)
5 or more £529.34 (£635.21 inc VAT)
  • Product Code: A1-2240
  • Delivery Time: 2 - 3 working days
  • Due to nationwide shortage of Phenolic and PIR insulation lead time may be longer for this product.
  • Brand: Xtratherm
  • (Tech. support: 03712221055)
  • Model and Size: 2400x1200 - 11.52m2
  • Weight: 144.00kg
Our ratings on 03-01-2025:
TrustPilot Review 4.7
4.7 out of 5 - Excellent
Google My Business Reviews
4.8 out of 5
Show other thicknesses

112.5mm Xtratherm Safe-R Thermal Liner SR/TB-MF (100mm Phenolic Core + 12.5mm Plasterboard) - Mechanical Fixing (pack of 4)

Width: 1200mm
Length: 2400mm
Pack Quantity: 4
Pack Coverage: 11.52m2
Weight/m2: 12.5kg
Weight: 144kg
Thermal Conductivity: 0.020W/mK
R-Value: 5m2K/W
Compressive Strength: 125kPa

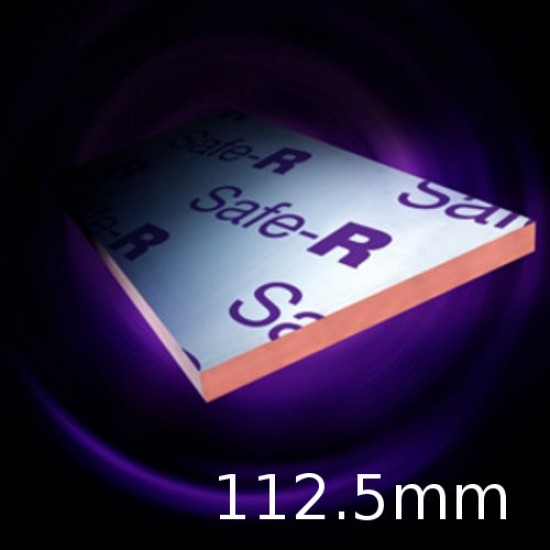

112.5mm Xtratherm Safe-R Thermal Liner SR/TB-MF is a composite insulated panel of Xtratherm 100mm Phenolic core with a composite tissue facing bonded to a 12.5mm tapered edge plasterboard for internal applications, mechanically fixed. Xtratherm Safe-R Thermal Liner SR/TB-MF is designed to provide high levels of thermal insulation and dry lining in one operation for masonry walls. The Safe-R Thermal Liner SR/TB-MF board achieves a resistance greater than 100 MN.s/g. Improved vapour resistivity when required, can be provided with two coats of Drywall Sealer. Safe-R Thermal Liner SR/TB-MF is faced with low emissivity aluminium/glass tissue facings, and has a thermal conductivity as low as 0.020W/mK.

Note: The plasterboard can be square edge, 9.5mm thick, fire or moisture resistant or soundproof, can be priced on request.

CHARACTERISTICS
  • Superior performance phenolic foam,
  • Thermal conductivity as low as 0.020 W/mK,
  • Effective thermal and fire performance,
  • Achieves a resistance greater than 100 MN.s/g,
  • Can be readily cut using a sharp knife or fine toothed saw,
  • Low smoke obscuration,
  • Low risk fire rating - Class 0,
  • HCFC/CFC Free,
  • Zero ODP,
  • Rot proof and will remain effective for the life span of the building,
APPLICATION
  • Internal wall drylining for new build or refurbishment
INSTALLATION
  • Fix a pre-treated timber batten horizontally at ceiling level and another 20mm above the finished floor level.
  • Fix vertical battens at max 600mm centres.
  • Ensure battens are wide enough to offer 20mm support to all four edges of the plasterboard.
  • Pack battens if necessary to level the wall.
  • Trim all openings and service penetrations with timber battens.
  • Insulation should be cut back to accommodate an adjoining panel at external corners.
  • Lift the SR/TB-MF Thermal Liner into position using wedges on the floor.
  • Screws should be fixed to the timber batten at 150mm centres, at least 12mm in from the board edge.
  • The fixings should penetrate at least 25mm into the batten.
  • Installation must be in accordance BS 8212:1988.
  • Fill any gaps with foam filler.

CERTIFICATION
Xtratherm Safe-R SR/TB is manufactured to EN ISO 13166 under Quality Systems approved to EN ISO 9001:2008 Quality Management, EN ISO 14001:2004 Environmental Management and BS OHSAS 18001 Health and Safety Management System.
