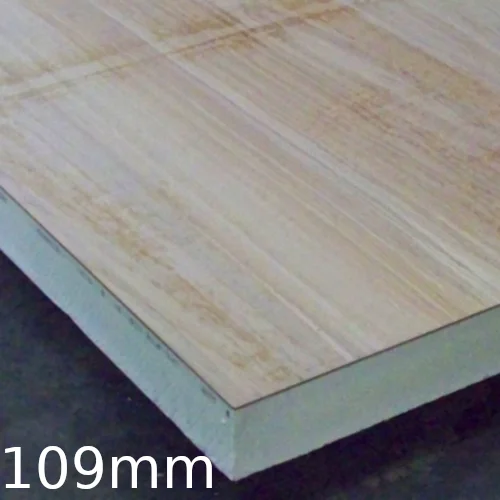

109mm Plydeck Xtratherm (PIR with OSB Board) - 100mm PIR and 9mm OSB Board

109mm Plydeck Xtratherm (PIR with OSB Board) - 100mm PIR and 9mm OSB Board
Guide Price
109mm Plydeck Xtratherm (PIR with OSB Board) - 100mm PIR and 9mm OSB Board
Guide Price: £61.98 (£74.38 inc VAT)
Price per m2: £21.52/m2 (£25.83 inc VAT)
  • Product Code: A1-183
  • Delivery Time: 1-3 working days
  • Brand: Xtratherm
  • (Tech. support: 03712221055)
  • Model and Size: 2400x1200 - 2.88m2
  • Weight: 29.02kg
Our ratings on 20-05-2025:
Google My Business Reviews
4.8 out of 5
Show other thicknesses

109mm Plydeck Xtratherm (PIR with OSB Board) - 100mm PIR + 9mm OSB Board

Width: 1200mm
Length: 2400mm
Board Coverage: 2.88m2
Density: 32kg/m3
Weight/m2: 10.14kg
Weight: 29.02kg
Thermal Conductivity: 0.022W/mK
R-Value: 4.55m2K/W
Compressive Strength: 150kPa

Xtratherm Plydeck is a composite insulated panel consisting of an 100mm Xtratherm Polyisocyanurate core with a composite foil face, bonded to 9mm OSB board. This advanced panel offers both thermal insulation and decking capabilities in a single application.

Application

Xtratherm Plydeck is designed to provide high levels of thermal insulation and decking in a single operation, suitable for both new and refurbishment flat roof applications. Approximately 16-20 Suretwist fixings are required per 1200x2400mm board, depending on rafter spacing.

Characteristics

  • Xtratherm Plydeck features a gas-tight foil membrane on its underside
  • Bedding the panel onto a layer of mastic creates a continuous vapor control layer
  • Xtratherm Plydeck is resistant to water absorption, making it suitable for damp environments
  • The insulation's low thermal conductivity allows for minimal board thickness, while the composite board offers rapid coverage and easy installation
  • A second layer of Xtratherm can be added between joists to enhance thermal performance or reduce material thickness over joists
  • Xtratherm Plydeck is durable and designed to perform throughout the building's service life
  • Lightweight, robust, and easy to handle, Xtratherm Plydeck can be cut using a saw or sharp knife

Certification

  • Manufactured under an ISO9001 assured quality system
  • Manufactured using Pentane as the blowing agent, which is CFC/HCFC-free with zero ozone depletion potential and a Global Warming Potential less than 0.01

Note: Bonding of the Unilin Insulation board (formerly known as Xtratherm) with other materials may be made by Unilin or a different fabricator.
